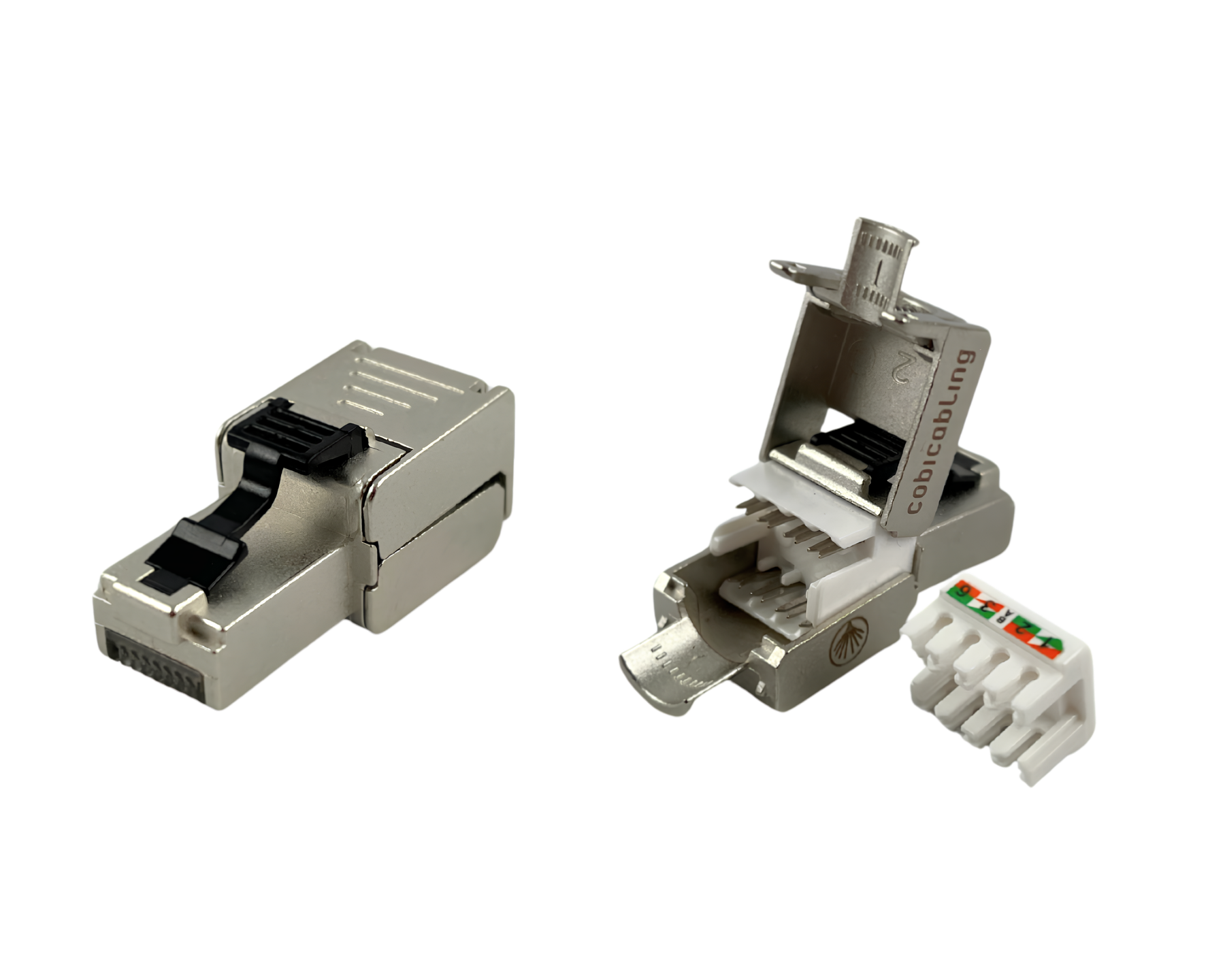

CobiCabling RJ45 Plug CAT. 6A STP Toolless
Fabrikant CobiCabling
Prijs op aanvraag
Artikelnr. C27-1001
CobiCabling plugs provide a reliable solution for field termination of solid copper cable
and enable quick, tool-free installation directly on site. They support cables from 24 to 22 AWG, both solid and stranded. Installation is simple:
insert the wires into the cable manager according to the colour code and snap the
housing shut. Compact and easy to install, they are a practical solution for engineers working across different installation environments.
Feature Values
| Dimensions (±0.2 mm) Width: | 15.00 mm, Height: 15.33 mm, Depth: 39.00 mm |
| Type of connector | RJ45 |
| Compatible with | Category 6A (backward compatible) |
| Shielding | STP (shielded) |
| Housing | Die-cast zinc alloy |
| Conductor diameter | 24–22 AWG |
| Durability | ≥2500 switching cycles (tested according to IEC 60603-7) |
